Number of light points 6
• Not dimmable
• 230V / 1 W / 350 mA
• 3000 K / Ra >85
• Projector protection class IP55, can be installed under the sauna bench, max. 80 cm from the floor
• Projector dimensions: Ø 30 mm, length 80 mm, installation box 130 x 85 mm
• Includes a stove lens
• Fiber lengths S-Flex 1.5 (B1.5): 5 x 2.5 m and S-Flex 2 (M5): 1 x 4.5 m
Number of light points 16
• Not dimmable
• 230V / 1 W / 350 mA
• 3000 K / Ra >85
• Projector protection class IP55, can be installed under the sauna bench, max. 80 cm from the floor
• Projector dimensions: Ø 30 mm, length 80 mm, installation box 130 x 85 mm
• Includes a stove lens
• S-Flex 1.5 (B1.5) fiber lengths: 5 x 1.5 m, 6 x 2.0 m, and 5 x 2.5 m
The sauna lighting set with a 1 W LED projector ensures low energy consumption and an extremely long lifespan. Completely silent and low-heat LED projectors are specifically designed for sauna lighting. This set is suitable for illuminating a small sauna of approximately 2 m².
This set is ideal for lighting small saunas. The fibers in the set are made of glass and can withstand temperatures up to 180°C. They can be installed both in the sauna benches and the ceiling.
The projector installation height is a maximum of 80 cm from the floor. Note! The fiber must not be cut! In addition to standard fiber sets, we also manufacture custom fiber sets with special dimensions upon request.

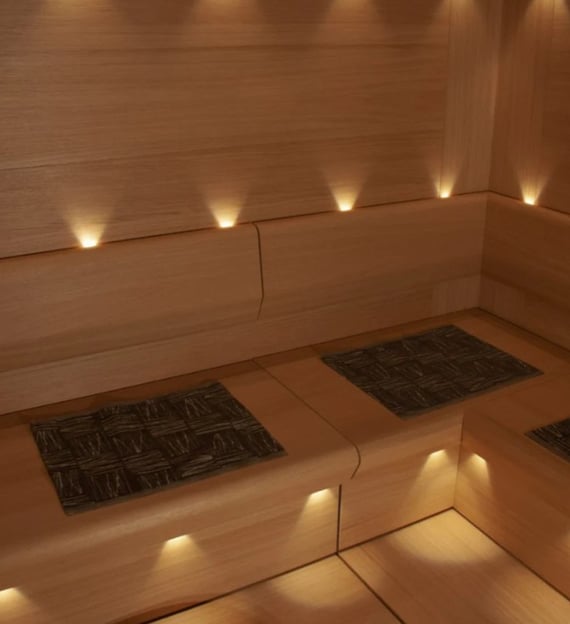

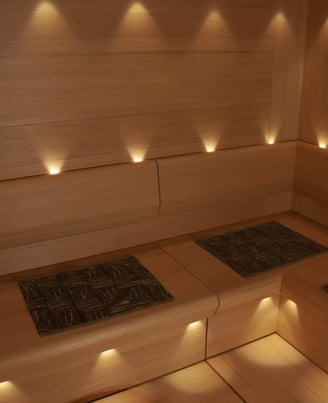

Sauna Eco
4m
• 2 pcs of 2-meter linear rods
• 1 pc of 5.0 m LED stove fiber (glass) with a lens
• 4 pcs of LED light sources at the ends of the rods, cable length 2.5 m
• Dimmable power supply suitable for a sauna, IP55. Dimmable with a trailing edge dimmer (TE)
• Ta 125°
• You can add one more LED light source to this set
6m
• 4 pcs of 1.5 m linear rods
• 1 pc of 5.0 m LED stove fiber (glass) with a lens
• 6 pcs of LED light sources – four at the ends of the rods and two between the rods. Cable length 2.5 m
• Dimmable power supply suitable for a sauna, IP55
• Ta 125°
• LED light sources cannot be added to this set.
The power supply in the set has a protection class of IP55, and the LED light sources are also IP55.
The power supply can be installed inside the sauna, under the bench, with a maximum installation height of 80 cm from the floor. The light sources contain 1 W LEDs. The maximum installation height for the linear rods and LED light sources is 1.5 m from the floor. Color temperature: 3000K.
The linear rod is illuminated from both ends and can be shortened on-site, e.g., with a circular saw. The rod is not fully illuminated around its surface. During installation, the rod can be adjusted to direct the light in the desired direction.
Easy to install even in an existing sauna. The power supply and LED light sources are suitable for surface mounting.

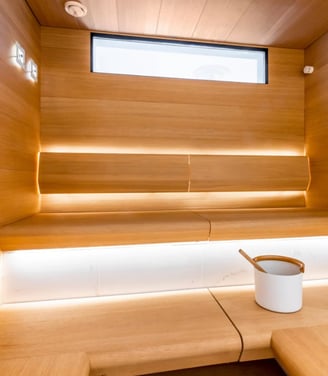

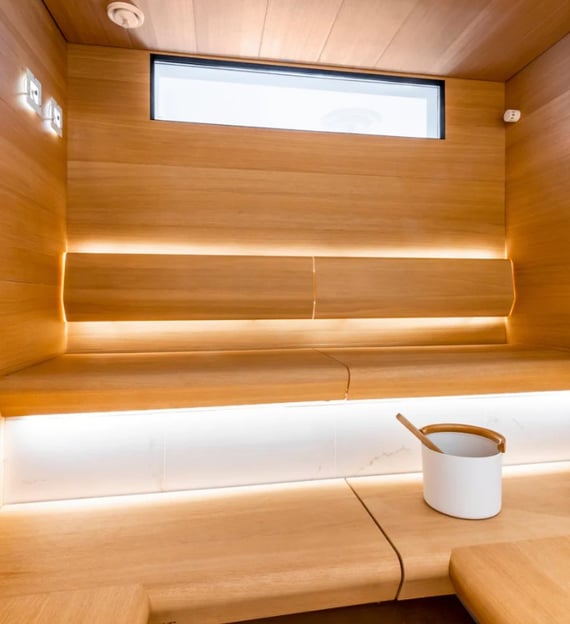

Sauna Linear 4m or 6m (LED) + Spot
Ribbon size: 2m or 6m / Lighting direction: side or top

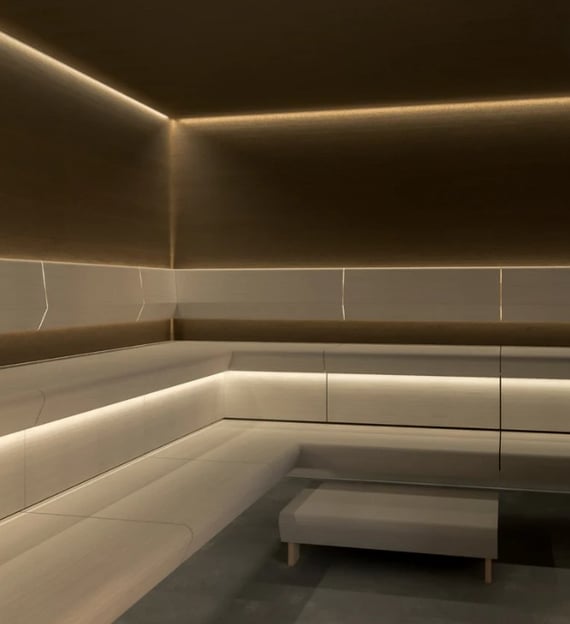

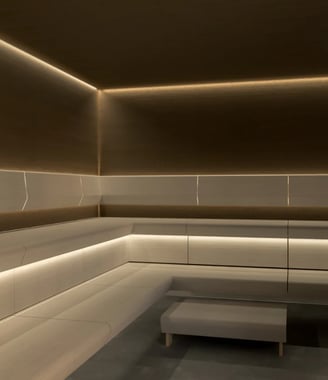

Ultra Ambient LED strip provides lighting for even the most demanding applications.
Ultra Ambient is designed for very challenging environments with temperatures ranging from -40 to +125°C. The product’s design takes into account the stresses caused by significant temperature variations and provides excellent durability at high ambient temperatures.
With Ultra Ambient, you can create beautiful indirect lighting on the sauna ceiling as well. There are two options available for this product: side-illuminating and top-illuminating versions. The flexible strips are very easy to install.
Delivered as an installation-ready set. The strip can be cut and adjusted to the desired length, with a cutting interval of 50 mm. Ultra Ambient is also used for backlighting of Aspectu and Eclipse products.
Also available in a dimmable version.
Sauna Ultra Ambient
A projector and a 75-fiber glass fiber bundle
• 230 V, 16.5 W LED, 1500 lm
• 50,000 hours lifespan
• 2700 K
• Ra > 90
• Projector dimensions: L 145 x W 150 x H 83, weight 1.03 kg
• Fiber size Ø 1 mm (S-Flex 1, B1); lengths
• 25 x 2.0 m
• 25 x 2.5 m
• 25 x 3.0 m
• Recommended sauna size: 1 - 4 m²
• The fibers in the set are made of glass and can withstand temperatures up to 180°C; they can be installed on the sauna ceiling
A projector and a 100-fiber glass fiber bundle
• 230 V, 16.5 W LED, 1500 lm
• 50,000 hours lifespan
• 2700 K
• Ra > 90
• Projector dimensions: L 145 x W 150 x H 83, weight 1.03 kg
• Fiber size Ø 1 mm (S-Flex 1, B1); lengths
• 25 x 2.0 m
• 50 x 2.5 m
• 25 x 3.0 m
• Recommended sauna size: 4 - 6 m²
• The fibers in the set are made of glass and can withstand temperatures up to 180°C; they can be installed on the sauna ceiling.
The projector VPAC27 in the set has a protection class of IP65 and can also be installed under the bench. Dimming is done via the input voltage.
The maximum installation height for the projector in the sauna is 80 cm from the floor. Note! The fiber must not be cut!
In addition to standard fiber sets, we also manufacture custom fiber sets with special dimensions upon request.

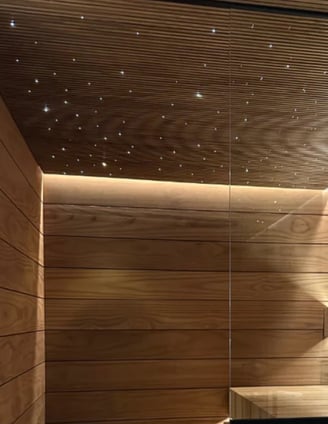

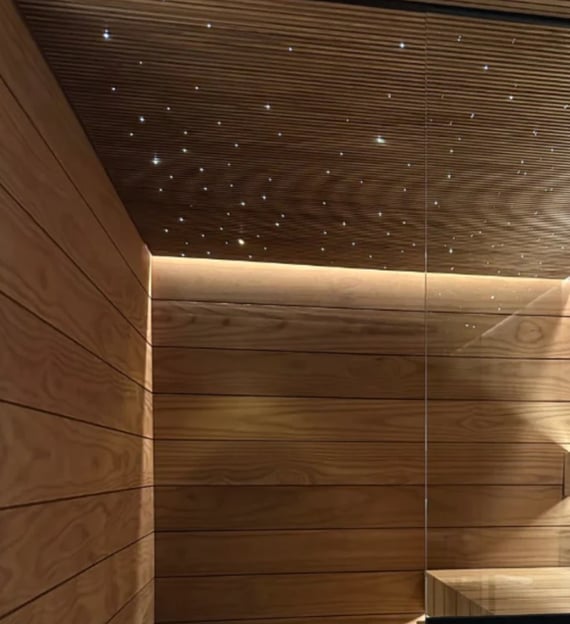

Sauna Starry Sky
The number of light points 11, 17, 23 or 29 pcs
This set is highly suitable for lighting small saunas. The fibers in the set can be installed both in the sauna benches and on the ceiling.
The set includes the VPL30 C RF LED projector, which features RGBW LED technology for color changing. Without a controller, the colors change independently. To control the color change, there is an RF controller panel that connects wirelessly to the projector. The controller panel only needs a power supply (230 V). The control can be expanded to, for example, a smartphone with a separate Wi-Fi-RF converter if needed. The suitable Easylighting app for control can be found on the App Store and Google Play.
The projector has a protection class of IP65 and can be installed inside the sauna, under the bench, with a maximum installation height of 70 cm from the floor.
Projector dimensions: L 250 x W 150 x H 83, weight 2.5 kg. The projector is completely silent, with no disturbing fan.
The complete, installation-ready set includes the LED projector, controller panel, and fiber bundle. The fiber size is Ø 2 mm (S-Flex 2, B2) and one thicker fiber Ø 4 mm (S-Flex 4, M8). The set includes a stove lens, which fits the Ø 4 mm fiber.
The fibers in the set are made of glass and can withstand temperatures up to 180°C.
The fibers can be installed in both the sauna benches and the ceiling.
The maximum installation height for the projector is 70 cm from the floor. Note! The fiber must not be cut!
In addition to standard fiber sets, we also manufacture custom fiber sets with special dimensions upon request.
